63-250MM Automatic Butt Fusion Welding Machine for Mining & Industrial
CNC Welding System Thermofusion Welding Equipment Water System MM-Tech Professional Supplier
- Fully encased, robust and compact CNC hydraulic controller unit
- PLC touch screen and RFID access technology, more convenient to operators.
- Support printing welding report with a capacity of 2000pcs, after welding, you can also download the reports by USD interface.
Automatic Butt Fusion Welding Machine 63-250mm PE Pipe
We MM-Tech supply high-quality automatic butt fusion welding machines with cutting-edge features. Designed with a fully encased CNC hydraulic controller and a durable PLC touch screen, these machines provide efficient and precise operation for various welding tasks. Equipped with a DuPont Teflon Coated Heating Plate and RFID technology, they offer extended service life and ease of use. Ideal for PE, PP, and HDPE pipe welding, our machines support industries like water supply, gas, and infrastructure. Lightweight aluminum clamps and a compact design ensure easy transport and handling. Perfect for manufacturers, wholesalers, and distributors!
Automatic Butt Fusion Welding Machines 63-250MM Data Sheet
| Automatic Butt Fusion Welding Machines 63-250MM Specifications | |||
| Model | SWT-V160/63A | SWT-V200/63A | SWT-V250/90A |
| Welding RanEe O.D.(mm) | (50)*63-160 | 63-200 | (75)*90-250 |

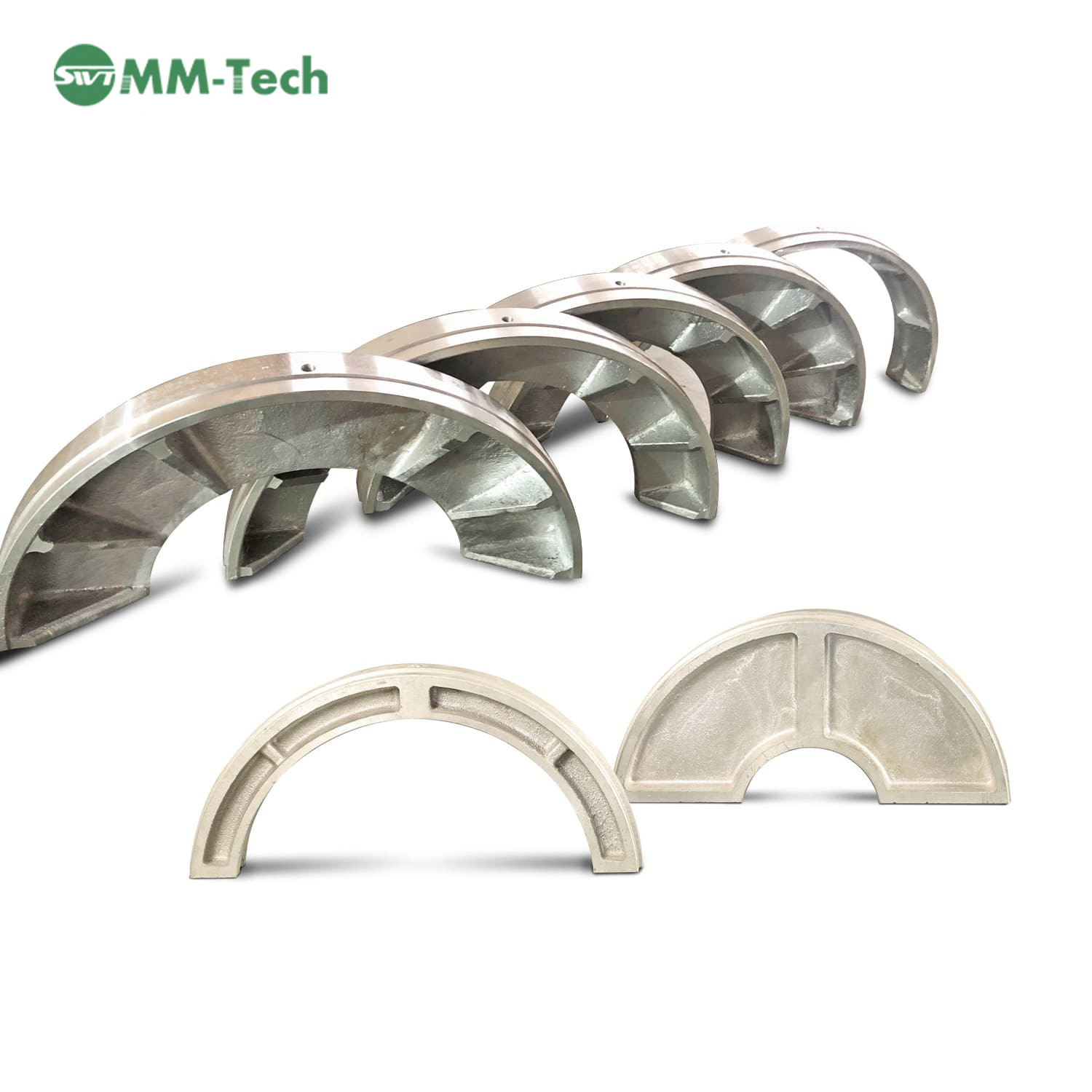

| Reduccr Inserts | (50)*63, 75,90, 110,125,140 | 63,75,90,110, 125, 140,160, 180 | (75)*,90, 110,125, 140, 160,180, 200, 225 |
| Poxer Supply | 230V 50/60Hz | 230V 50/60Hz | 230V 50/60Hz |
| Rated Power (kw) | 2.5 | 3.0 | 4.25 |
| Piston Area (cm²) | 6.27 | 6.27 | 10.99 |
| Overall M.W./G.W. (kg) | 96 124 | 110 140 | 137 163 |
Get Free Quote of Automatic Butt Fusion Welders
2-Year Quality Warranty, Technical Support
CNC Welding Automatic Butt Fusion Welding Machines Video
Automatic Butt Fusion Welding Machine Applications
This equipment is perfect for welding HDPE, PP, and PVDF pipes across a variety of applications such as Potable Water systems, Waste Water treatment facilities, Mining & Industrial setups, and Geothermal Heating & Cooling projects.
WELDED THERMOPLASTIC TUBE TYPE
MM-Tech Automatic Butt Fusion Welder features extensive material compatibility, efficiently welding various plastic pipes such as HDPE, PE, PP, and PVDF. These materials are widely recognized for their superior physical properties and chemical stability, making them ideal for diverse industrial applications.
Welding Effects Display
Appreciate the high-quality details and meticulous craftsmanship of our machine-welded HDPE pipeline welds. This visual presentation highlights the seamless integrity and unwavering reliability of each welded joint, ensuring exceptional strength and precision. Leveraging cutting-edge detection technologies and stringent quality control protocols, we guarantee that every weld meets the highest industry standards. This commitment to excellence ensures long-term safety, durability, and outstanding performance for your piping systems.
PRODUCT FEATURES

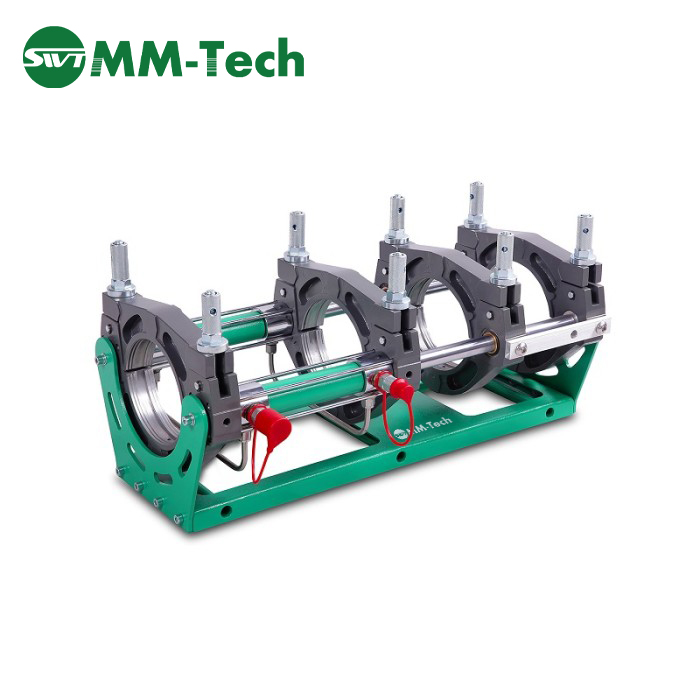

This product features a robust design with several key enhancements: it incorporates a high-performance oil seal kit sourced from Germany, ensuring stable pressure performance; it is equipped with 4 sets of quick couplings from STUCCHI in Italy, facilitating efficient machine preparation and preventing hydraulic oil leakage during connection or disconnection; and it utilizes an integral shaft with top chromate treatment, replacing the traditional assembled shaft to significantly enhance chassis strength and prevent frame twisting or deformation under extreme operating conditions.

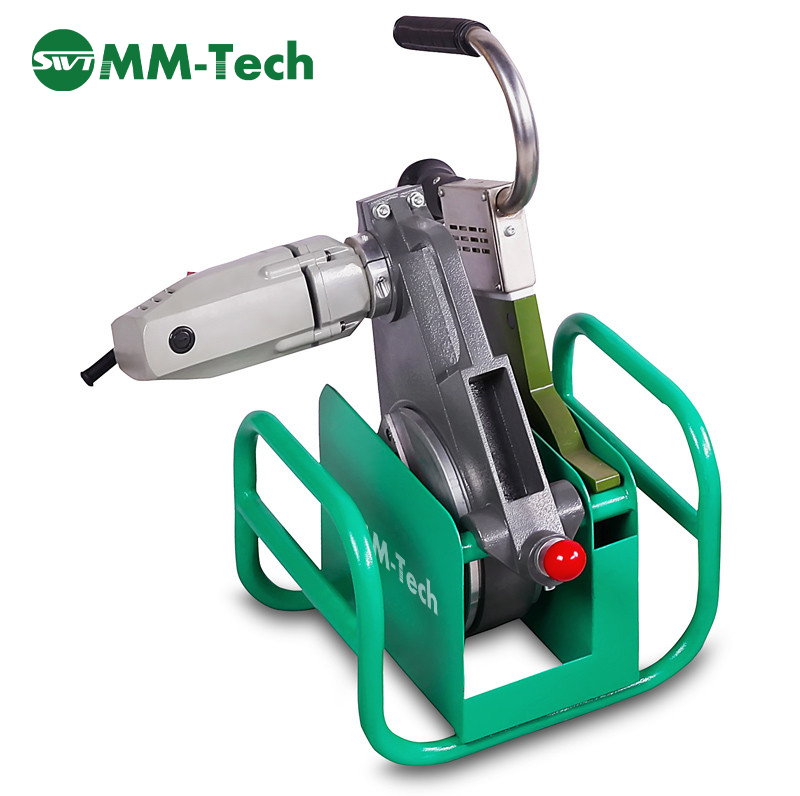

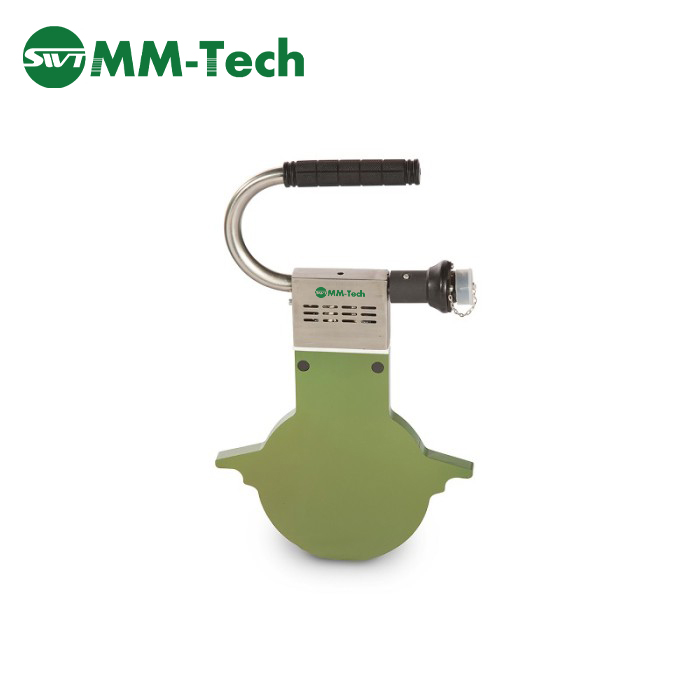

This equipment features a high-quality heating plate coated with Dupont material, ensuring excellent non-stick performance and minimal temperature deviation (2-3°C for small machines, 5-6°C for larger ones), while the trimmer incorporates a safety switch to prevent accidental operation, prioritizing operator security. Additionally, the ergonomic design of the support system enhances user comfort and efficiency during operation.

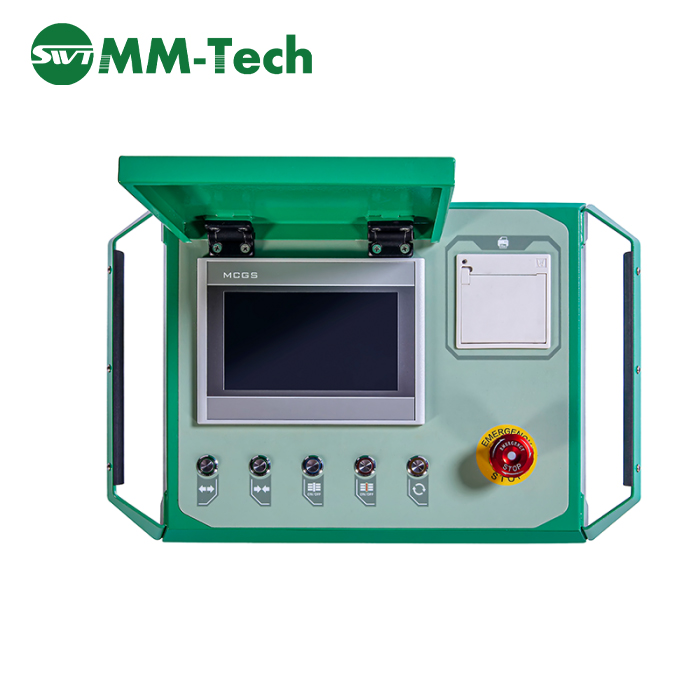

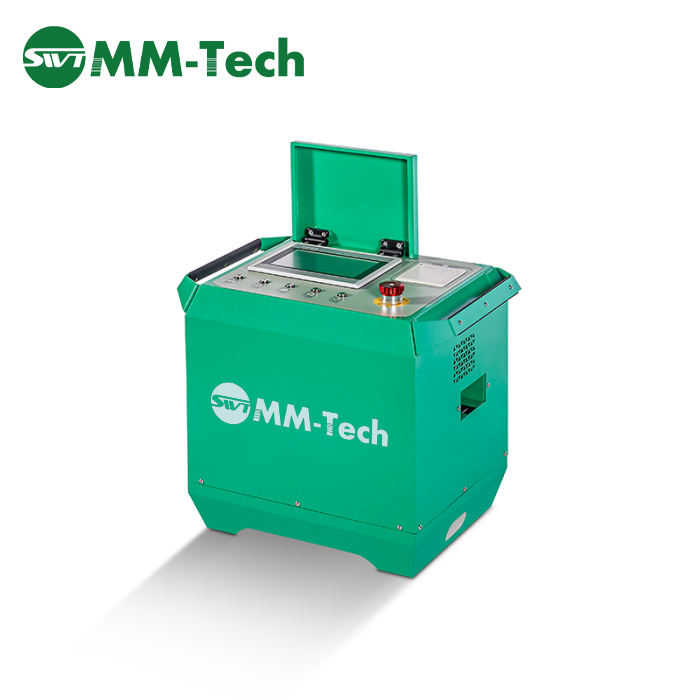

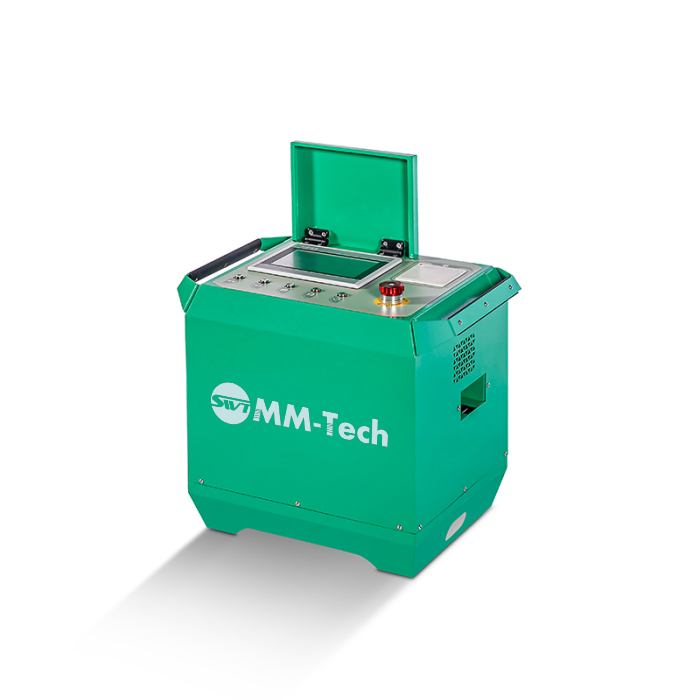

The Automatic Control Box for MM-Tech basic models (O.D 63-1200mm) combines IP54 protection with a lightweight servo-driven design that enhances precision, reduces failures, and lowers maintenance. Integrated rear sockets eliminate external power distributors, supporting tools like trimmers and heating plates. It complies with DVS/ISO/WIS welding standards in multiple languages, stores 2000+ reports (local/USB/printable), and features a PLC touchscreen with RFID access for secure operation. Remote capabilities include troubleshooting, program updates, and safe heating plate control, ensuring high reliability and operator safety.
OPTIONS
PACKING
Whether it’s one or a batch of machines, MM-Tech ensures prompt and secure delivery, with equipment arriving intact.
