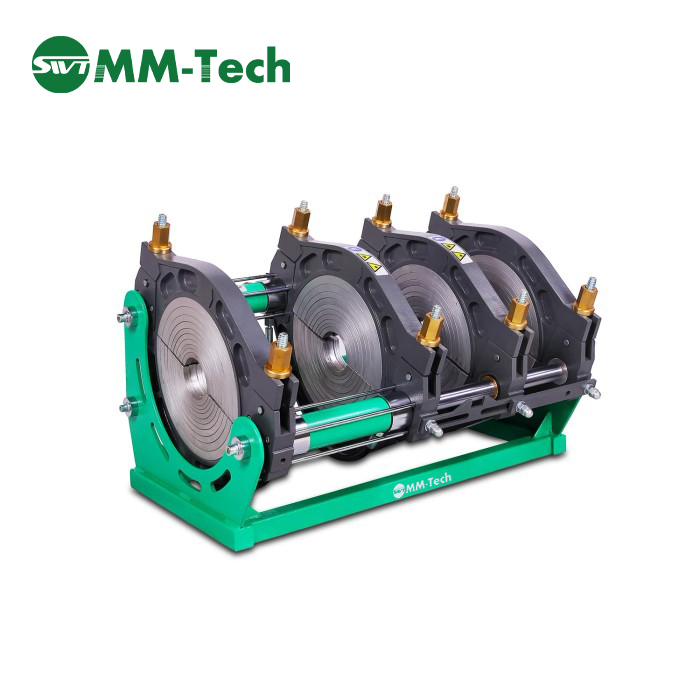

90-355mm Automatic Butt Fusion Welding Machines for Oil & Gas Gathering
Automatic butt welding machine is used for joining PE, PP, PPR, and PVDF pipes and moulded fittings, and its long – lifespan components ensure low maintenance, user – friendly and reliable operation.
- Support printing welding report with a capacity of 2000pcs, after welding, you can also download the reports by USD interface.
- Unique DupontTeflon Coating Heating Plate, anti-stick and longer service life.
- Narrow single reducer inserts and ISO single inserts optional.
90-355MM Automatic Butt Fusion Welding Machine Description
At MM-Tech, we specialize in manufacturing superior quality automatic butt fusion welding machines that incorporate innovative features. Our machines are built with a fully integrated CNC hydraulic controller and a robust PLC touch screen interface, ensuring seamless and accurate performance across diverse welding operations. The inclusion of a DuPont Teflon Coated Heating Plate and advanced RFID technology enhances durability and simplifies user interaction. Designed for seamless integration with PE, PP, and HDPE pipes, these units cater to industries such as water supply, gas distribution, and infrastructure development. With lightweight aluminum clamps and a space-saving design, our equipment is easy to transport and operate. These machines are an excellent choice for manufacturers, wholesalers, and distributors seeking reliable welding solutions.
Automatic Butt Fusion Welding Machine 90-355mm Data Sheet
| Automatic Butt Fusion Welding Machine 90-355mm Specifications | ||
| Model | SWT-V315/90A | SWT-V355/90A |
| Welding RanEe O.D.(mm) | 90-315 | 90-355 |
| Reduccr Inserts | 90,110,125,140,160, 180,200,225,250,280 | 90,110,125, 140,160,180, 200, 225, 250, 280, 315 |
| Poxer Supply | 230V 50/60Hz | 230V 50/60Hz |
| Rated Power (kw) | 5.25 | 5.25 |
| Piston Area (cm²) | 20.02 | 20.02 |
| Overall M.W./G.W. (kg) | 189 234 | 208 256 |
Get Free Quote of Automatic Butt Fusion Welding Machine
2-year quality warranty, technical support, professional training
CNC Welding Automatic Butt Fusion Welding Machines Video
Automatic Butt Fusion Welding Machine Applications
This equipment is perfect for welding HDPE, PP, and PVDF pipes across a variety of applications such as Potable Water systems, Waste Water treatment facilities, Mining & Industrial setups, and Geothermal Heating & Cooling projects.
WELDED THERMOPLASTIC TUBE TYPE
MM-Tech Automatic Butt Fusion Welding Machine stands out for its broad material adaptability. It can proficiently weld a range of plastic pipes, including HDPE, PE, PP, and PVDF. Renowned for their excellent physical characteristics and chemical steadiness, these materials are well – suited for numerous industrial uses.
Welding Effects Display
Marvel at the top – notch details and painstaking craftsmanship of the welds on our machine – welded HDPE pipelines. This visual display showcases the flawless integrity and rock – solid reliability of every welded joint, assuring remarkable strength and accuracy. By making use of state – of – the – art detection techniques and strict quality control procedures, we ensure that each and every weld adheres to the loftiest industry standards. Our dedication to perfection secures long – term safety, durability, and outstanding functionality for your piping systems.
PRODUCT FEATURES
This product is designed with advanced features to ensure optimal performance and durability. It includes a premium oil seal kit from Germany, which maintains consistent pressure stability. Additionally, it is equipped with four sets of quick couplings from STUCCHI, Italy, designed to simplify machine setup and prevent hydraulic oil leaks during connection or disconnection. The use of an integral shaft with top chromate treatment enhances chassis strength, reducing the risk of frame twisting or deformation when handling extreme parameters.

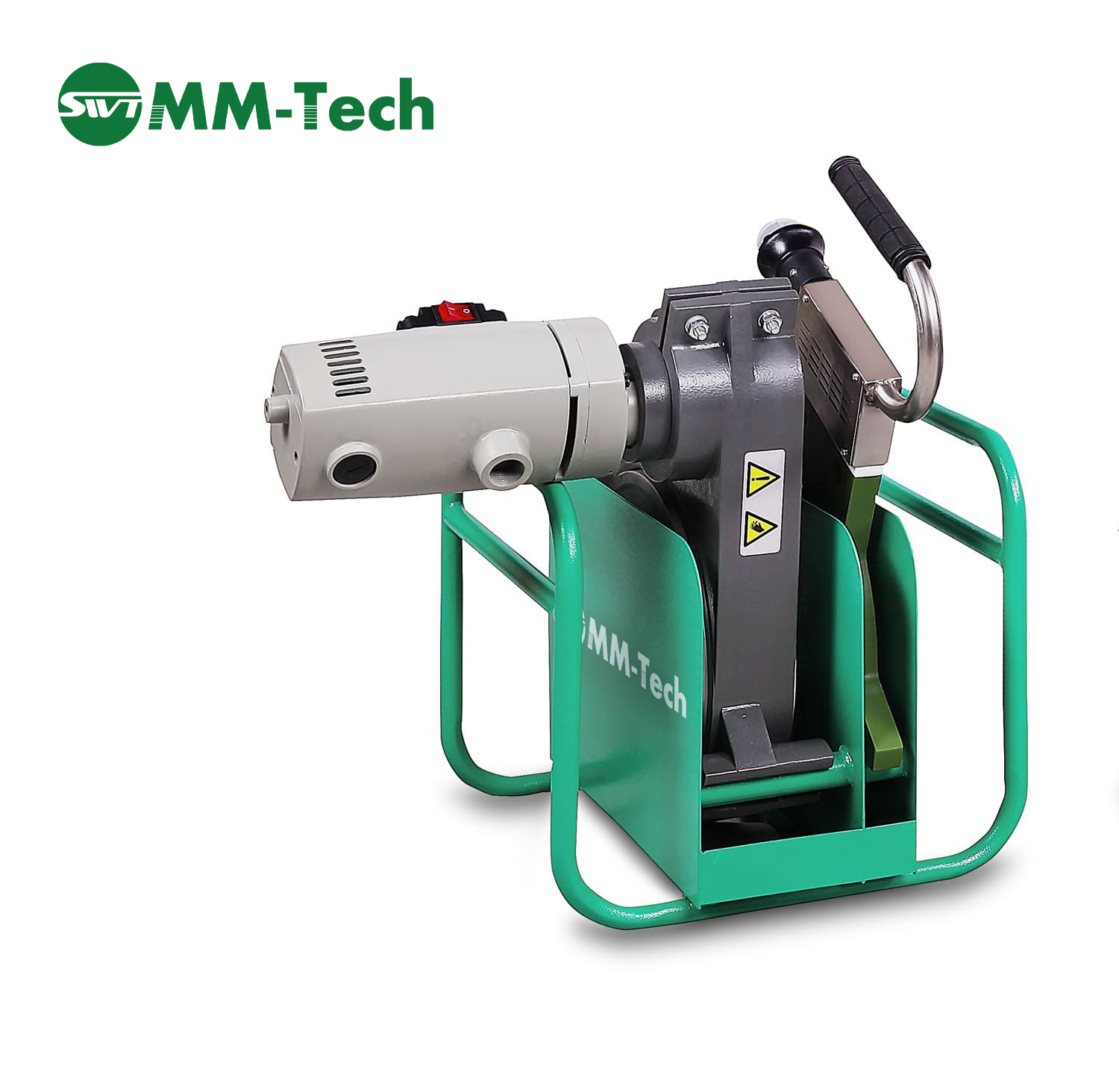

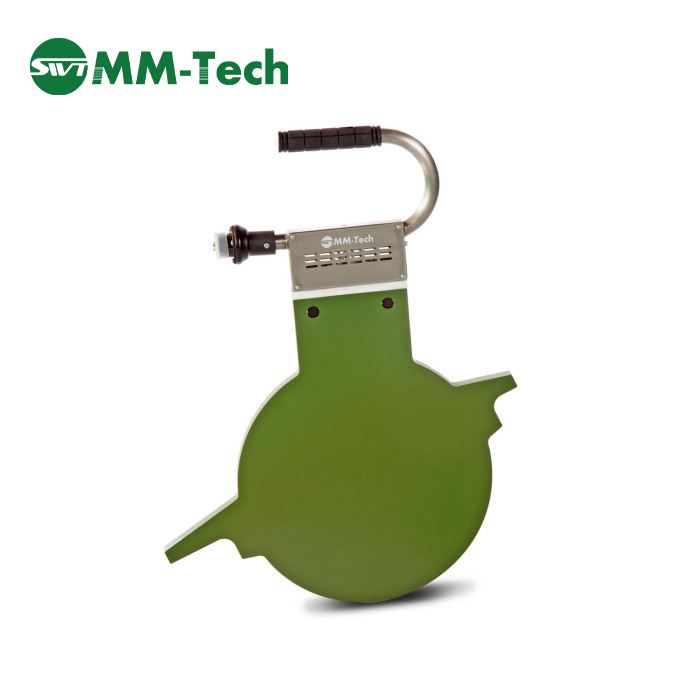

The heating plate is coated with high-quality Dupont material from the USA, ensuring excellent adhesion and minimal temperature variation across its surface—2-3°C for smaller units and 5-6°C for larger ones. The trimmer is equipped with a safety switch that prevents accidental activation, ensuring operator safety at all times. Additionally, the support system is designed with ergonomics in mind, enhancing comfort and efficiency during operation.

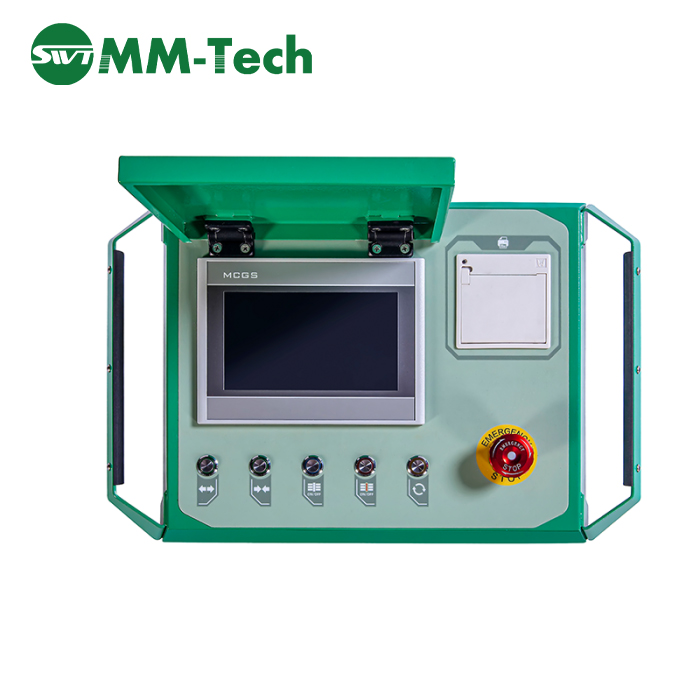

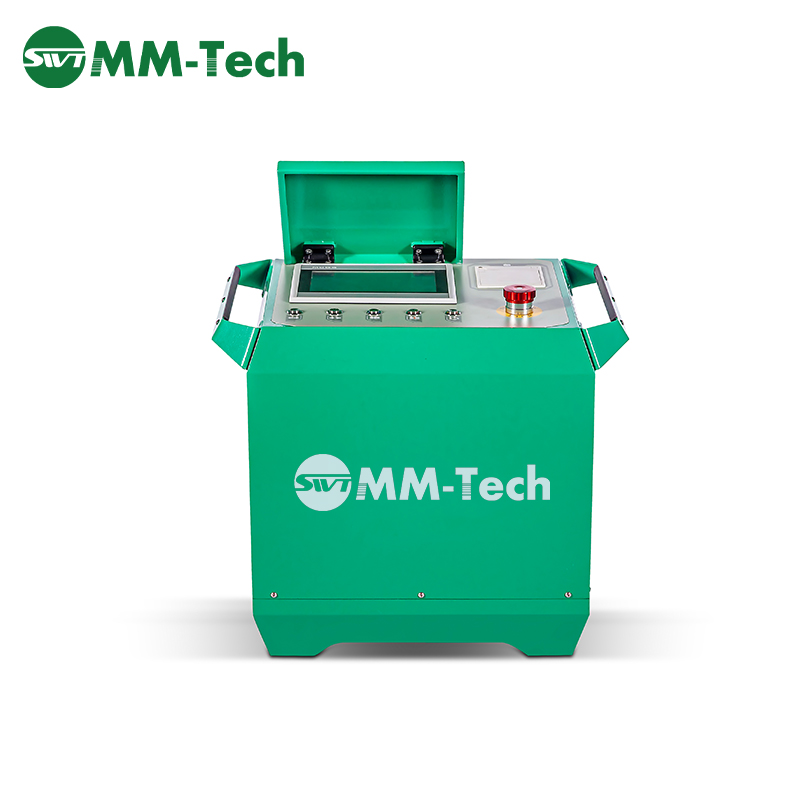

The MM-Tech Automatic Control Box (63-1200mm O.D) offers IP54-rated durability and a servo-powered lightweight structure, optimizing precision and minimizing operational downtime. It integrates rear-panel ports for direct tool connectivity (e.g., trimmers, heating plates), eliminating external power modules. Compatible with DVS/ISO/WIS welding protocols and multilingual interfaces, it archives over 2,000 weld records locally or via USB, with print functionality. The PLC touchscreen and RFID security enable streamlined access, while remote diagnostics, software upgrades, and safe heating plate management ensure operator protection and system longevity.
OPTIONS
PACKING
Whether it’s one or a batch of machines, MM-Tech ensures prompt and secure delivery, with equipment arriving intact.
