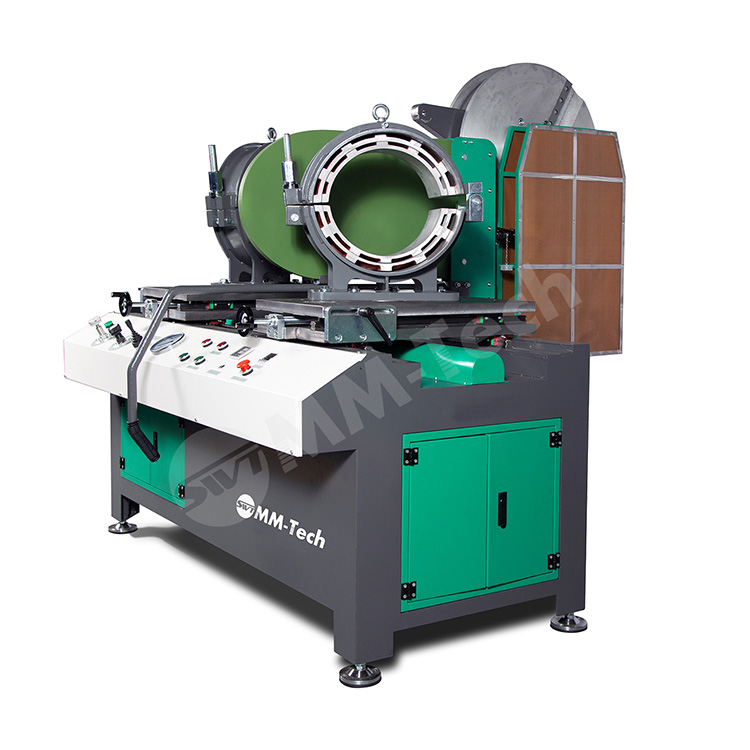

HDPE Fitting 400mm Fabrication Welding Machines in Factory
Fitting Fabrication welding machines are used for producing or manufacturing plastic pipe fittings.
- Hydraulic System
- Automatic Welding Process
- USB port
- Oil Cylinder
- Safety protection
HDPE Fitting Fabrication Welding Machines for Making Pipe Fittings
We MM-Tech supply **Pipe Fitting Welding Machine** series covering a full range of models from 315mm to 1600mm to meet various pipe welding needs. This series of machine adopts the hydraulic system designed by the engineers who drafted the Chinese heat fusion welding standard, with precise control, double hydraulic system, automatic butt welding process and USB interface function, which is convenient for data saving and software upgrading. The machine is equipped with color screen display, simple and safe operation. Widely used in the pipe welding and processing industry, it is suitable for customer groups who need high precision welding, such as pipeline engineering companies, manufacturers and suppliers.
Fitting Fabrication Welding Machines Data Sheet
| Fitting Fabrication Welding Machines Specification | |
| Model: manual operation | SWT-MA400 |
| Elbow | OD90-400mm(0° to 90°) |
| Tee | OD90-400mm |
| Cross | OD90-400mm |
| Power Supply | 380 V AC, 50/60 Hz |
| Heater Power | 9.0 kW |
| Trimmer Power | 2.2 kW |
| Hydraulic Power | 0.75Kw |
| Total Absorbed Power | 11.95 Kw |
| Max. Working Pressure | 80Bar |
| Cylinder cross section area | 10.9 cm3 |
Get Free Quote of Fitting Fabrication Welding Equipment
2-year quality warranty; technial support
PE Fitting Fabrication Welding Equipment Video

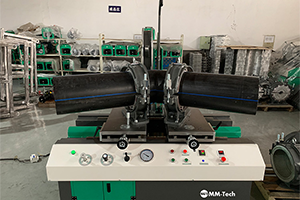

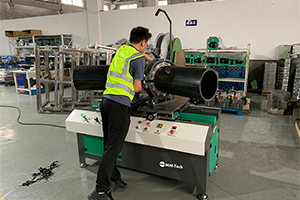

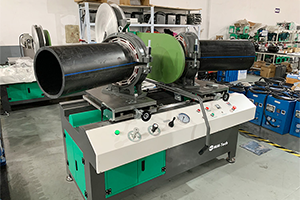

Fitting Fabrication Welding Machines Applications
Pipe Fitting Factory/Manufacturer
PRODUCT FEATURES
Standard Composition

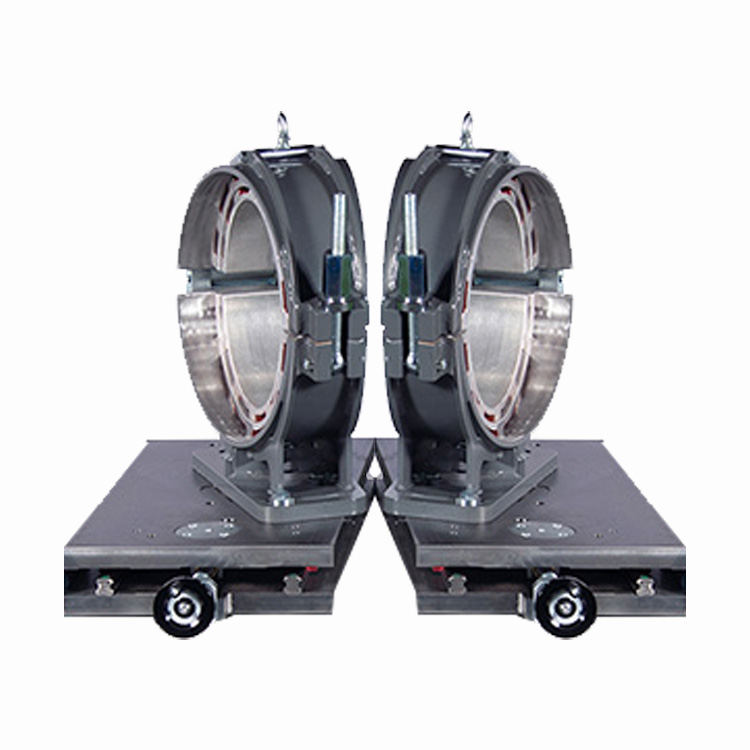

- Basic Machine Structure: It consists of a basic machine equipped with two carriages. Both carriages are driven by a hydraulic system, ensuring smooth and stable operation.

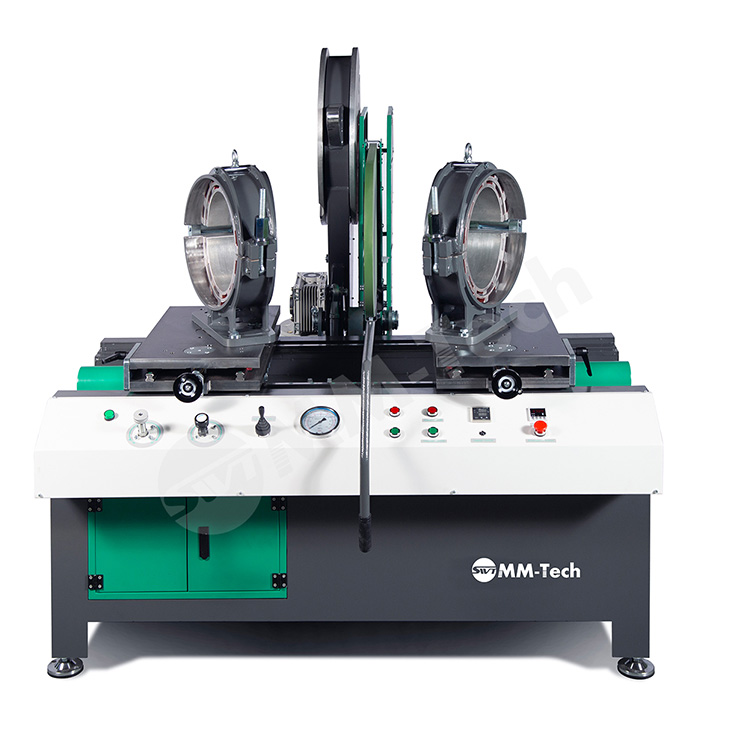

- Hydraulic Control Panel: There is a manual hydraulic control panel. All functional keys and buttons are arranged in a planar layout on this panel, facilitating easy operation and control.
- Electrical Trimmer: An electrical trimmer is installed, which is equipped with gears and a safety microswitch. This design ensures safe and efficient trimming operations.
- Heating Plate: The heating plate is coated with PTFE and comes with a steel shield. The PTFE coating offers excellent non – stick properties, while the steel shield provides protection and durability.

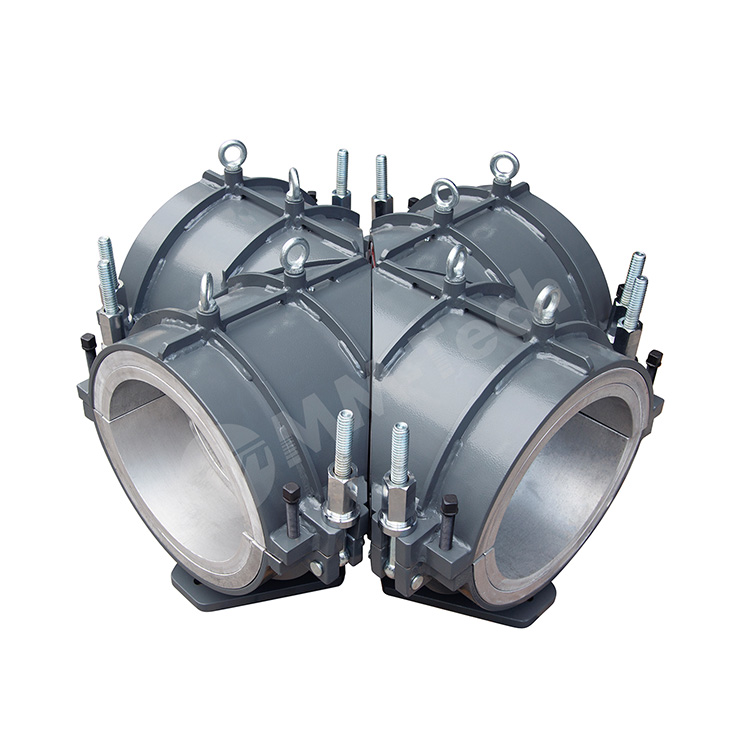

- Elbow Clamps: There are left and right elbow clamps with a diameter of φ315mm. A full set of aluminum inserts ranging from φ90mm to φ280mm is included, allowing for compatibility with different pipe diameters.

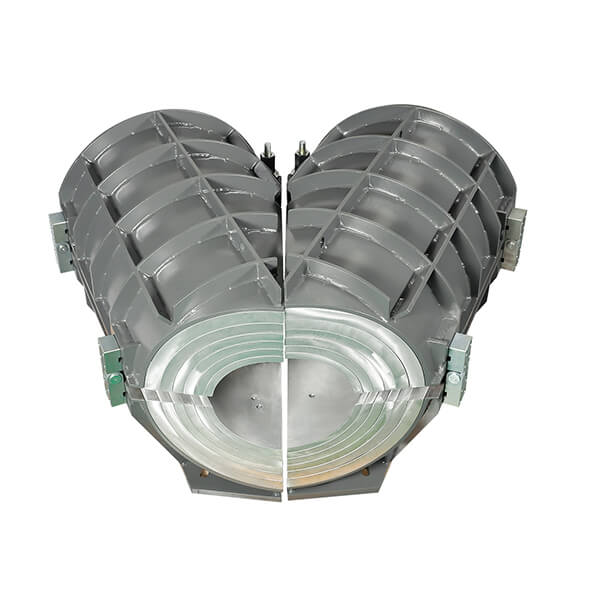

- Tees and Crosses Clamps: Left and right 90° Tees and Crosses clamps with a diameter of φ315mm are also provided. They are accompanied by a full set of aluminum inserts from φ90mm to φ280mm, meeting various connection requirements.
