HDPE Fitting Fabrication Welding Machines in Factory
Fitting Fabrication welding machines are used for producing or manufacturing plastic pipe fittings.
- Hydraulic System
- Automatic Welding Process
- USB port
- Oil Cylinder
- Safety protection
HDPE Fitting Fabrication Welding Machines for Making Pipe Fittings
We MM-Tech supply **Pipe Fitting Welding Machine** series covering a full range of models from 315mm to 1600mm to meet various pipe welding needs. This series of machine adopts the hydraulic system designed by the engineers who drafted the Chinese heat fusion welding standard, with precise control, double hydraulic system, automatic butt welding process and USB interface function, which is convenient for data saving and software upgrading. The machine is equipped with color screen display, simple and safe operation. Widely used in the pipe welding and processing industry, it is suitable for customer groups who need high precision welding, such as pipeline engineering companies, manufacturers and suppliers.
Fitting Fabrication Welding Machines Data Sheet
| Fitting Fabrication Welding Machines Specification | |
| Model: manual operation | SWT-MA315 |
| Elbow | OD90-315mm(0° to 90°) |
| Tee | OD90-315mm |
| Cross | OD90-315mm |
| Power Supply | 380VAC, 50/60Hz |
| Heater Power | 5.0Kw |
| Trimmer Power | 1.5Kw |
| Hydraulic Power | 0.75Kw |
| Total Absorbed Power | 7.25Kw |
| Max. Working Pressure | 60Bar |
Get Free Quote of Fitting Fabrication Welding Equipment
2-year quality warranty; technial support
PE Fitting Fabrication Welding Equipment Video
Fitting Fabrication Welding Machines Workshop
Pipe Fitting Factory/Manufacturer
PRODUCT FEATURES
Standard Composition
- Core Machine Framework: At its heart, the basic machine is outfitted with two carriages. These carriages are powered by a hydraulic system, ensuring seamless and stable operation throughout the equipment’s use.
- Manual Hydraulic Control Interface: A manual hydraulic control panel is present. All functional keys and buttons are arranged in a planar fashion on this panel, enabling effortless operation and precise control.
- Electric Trimming Mechanism: An electric trimmer is integrated into the system. It is equipped with gears and a safety microswitch, guaranteeing safe and highly efficient trimming processes.
- Heating Plate Arrangement: The heating plate has a PTFE coating and is shielded by steel. The PTFE coating imparts excellent non – stick characteristics, while the steel shield offers protection and enhances the plate’s durability.
- Elbow Clamp Setup: There are left and right elbow clamps with a diameter of φ315mm. They come with a comprehensive set of aluminum inserts that range from φ90mm to φ280mm, allowing for adaptability to a wide variety of pipe diameters.
- Tees and Crosses Clamp Setup: Left and right 90° Tees and Crosses clamps with a diameter of φ315mm are also part of the configuration. They are accompanied by a full set of aluminum inserts spanning from φ90mm to φ280mm, catering to diverse connection requirements.

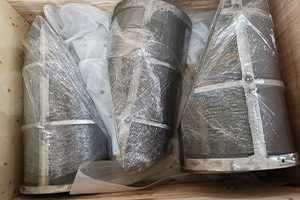

PACKING
Whether it’s one or a batch of machines, MM-Tech ensures prompt and secure delivery, with equipment arriving intact.
