TSC Series Bench Socket Fusion Machine for 20-160mm PP-R PE PP PB PVDF Pipes
TSC-90 with intelligent temperature control and application are PP-R PE PP PB PVDF Pipes.
- The removable tripod stand’s main frame offers unparalleled convenience for use on construction sites and flat surfaces.
- The intelligent temperature control box possesses the capability to weld a wide variety of materials.
- The active tripod stand effectively supports the pipe, thereby ensuring high-quality welding results.

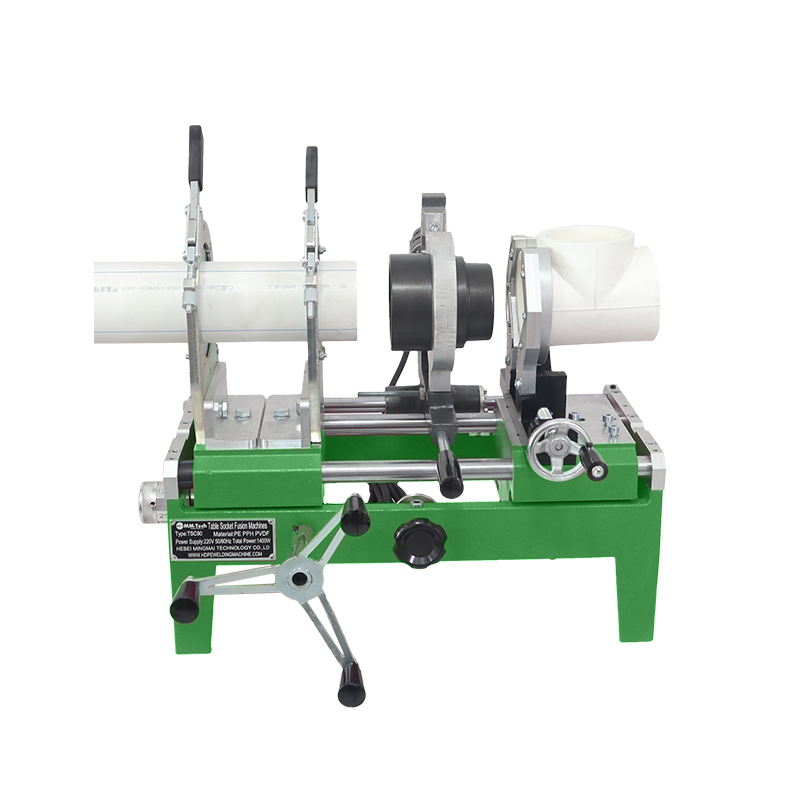

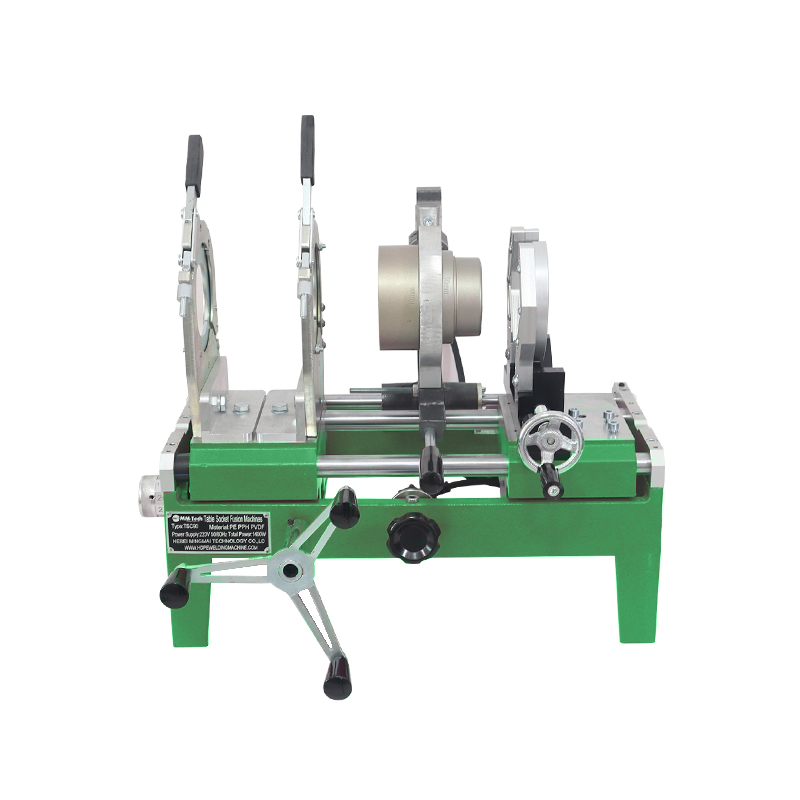

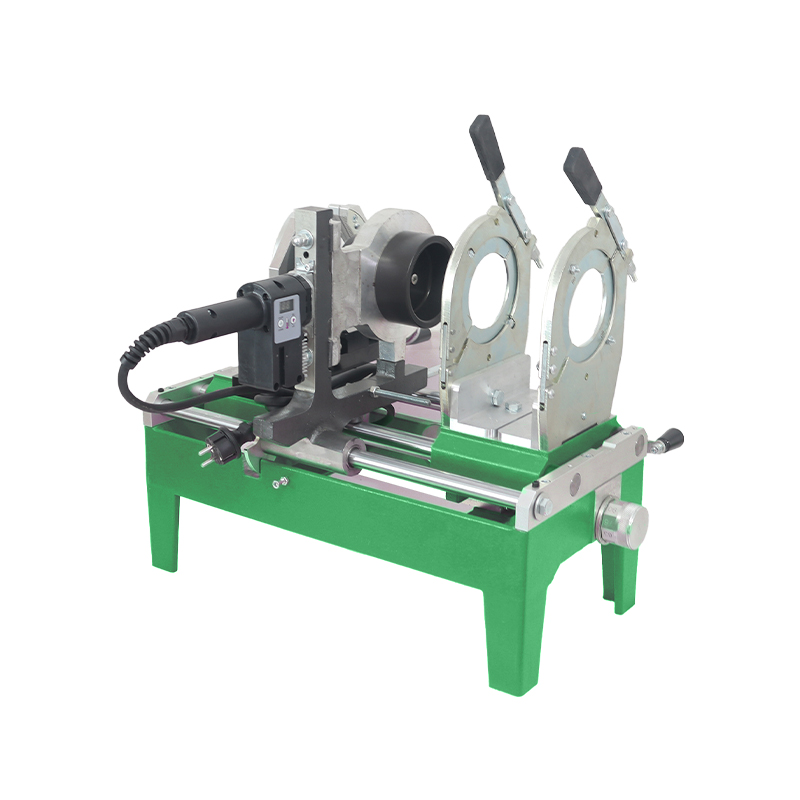

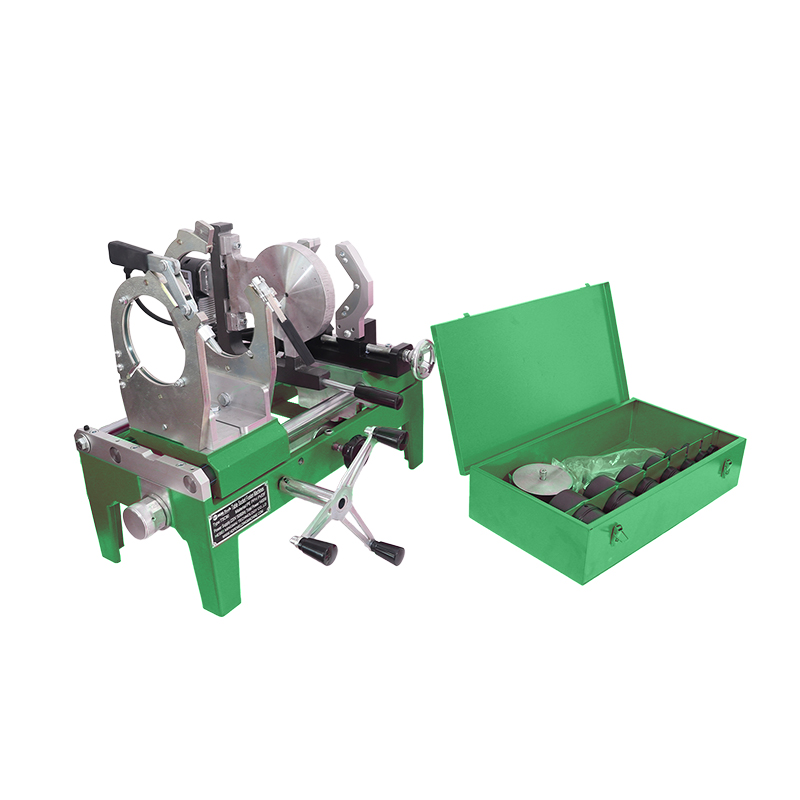

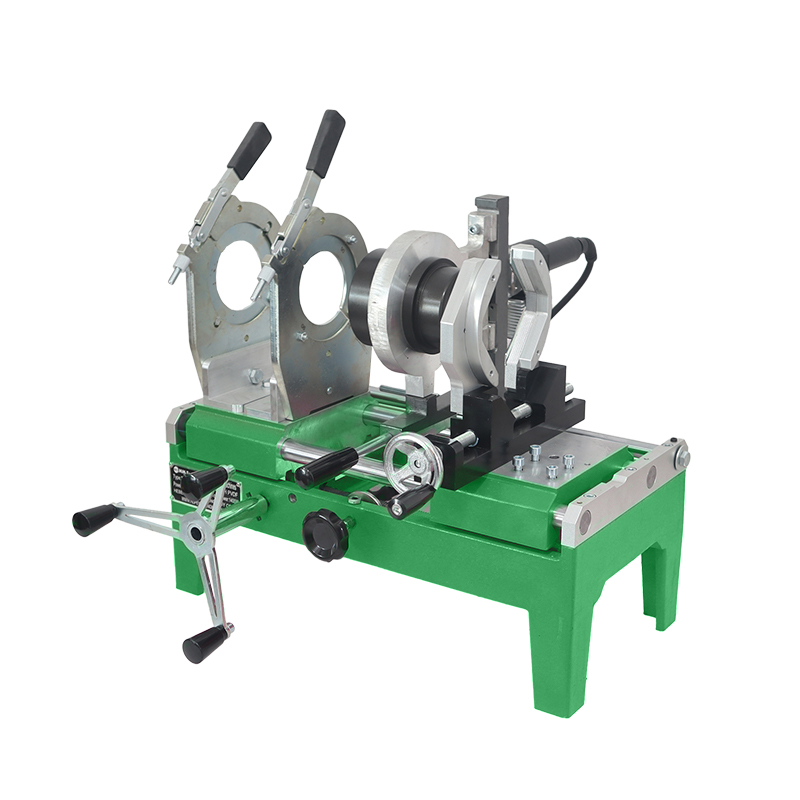

TSC Series Bench Socket Fusion Machine
The TSC Series machine features an intelligent temperature control system specifically designed for welding PP-R, PE, PP, PB, and PVDF pipes. Its removable tripod stand offers unmatched convenience for use on both construction sites and flat surfaces, making it versatile and adaptable. The intelligent temperature control box can handle a wide range of materials, ensuring precision and reliability. The active tripod stand provides effective support for the pipe during welding, guaranteeing high-quality results. Overall, the TSC Series is a versatile, reliable, and efficient welding machine.
Bench Socket Fusion Welder 20-160mm Data Sheet
| Model | TSC-90 | TSC-160 |
| Working temperature | 200~279℃±1% | 200-279℃±1% |
| Materials | PP-R PE PP PB PVDF | |
| Rated voltage | AC110V/220V,50/60Hz | A.C 220/230V, 50/60HZ |
| Rated power | 1200W | 1800W |
| Working range | 20-90mm | 50-160mm |
| G.W./N.W. | 90/76kg | 150/130kg |
| Carton size | 800×600×400mm | 1100×820×760mm |
Get Free Quote of TSC-90 Bench Socket Fusion Machine
2-year quality warranty; Technial support; CE certificate
TSC-90 Bench Socket Fusion Welder Applications
Applications: supply water system, drainage system, industrial fluid transport
WELDED THERMOPLASTIC TUBE TYPE

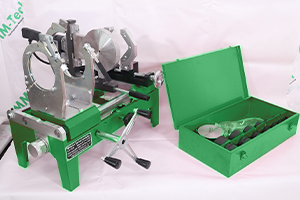

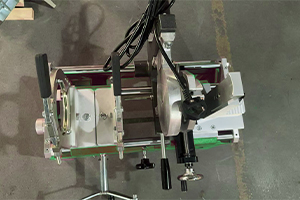

PACKING
Whether it’s one or a batch of machines, MM-Tech ensures prompt and secure delivery, with equipment arriving intact.
